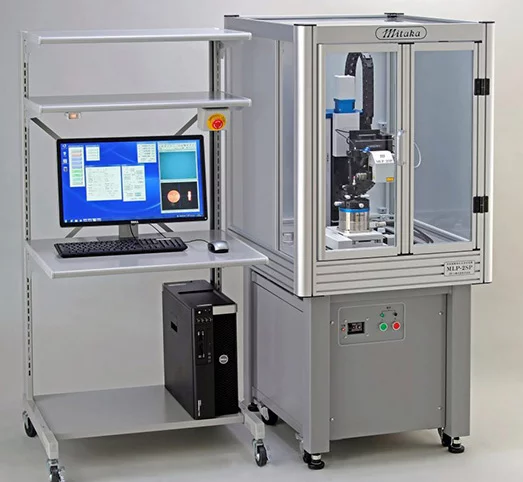

ALL ROUND LASER POINT PROBE MLP-3

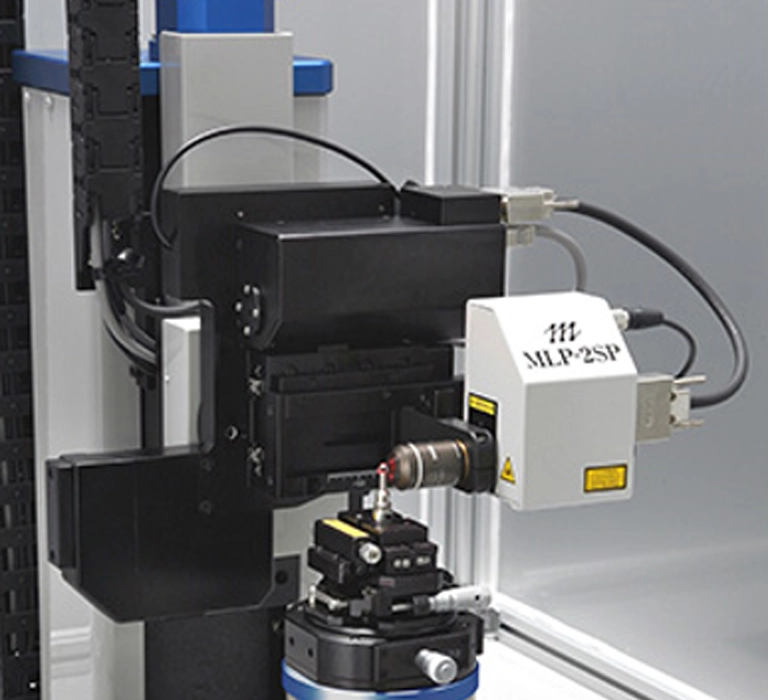

Building on the redesigned MLP-2, the MLP-3 is a 5-axis laser CMM featuring a high-speed θ rotary stage and AutoFocus functionality. Equipped with 3D measurement and evaluation capabilities, it enables non-contact measurement of contour and surface topography on all types of components.
All round scanning – Performances esclusive
- 5 programmable motorized scanning axes
- 0.4 µm laser spot size
- 3D measurement of components up to 120 mm with nanometric resolution
- Fast roughness and profile measurements (128,000 points in 6 minutes)
- Scanning of transparent and highly reflective surfaces
- Seamless 3D reconstruction of large surfaces
- Reverse engineering (STL files) for FEM analysis and CAD comparison
- Measurement of steep-angle profiles (<87°)
Key Features

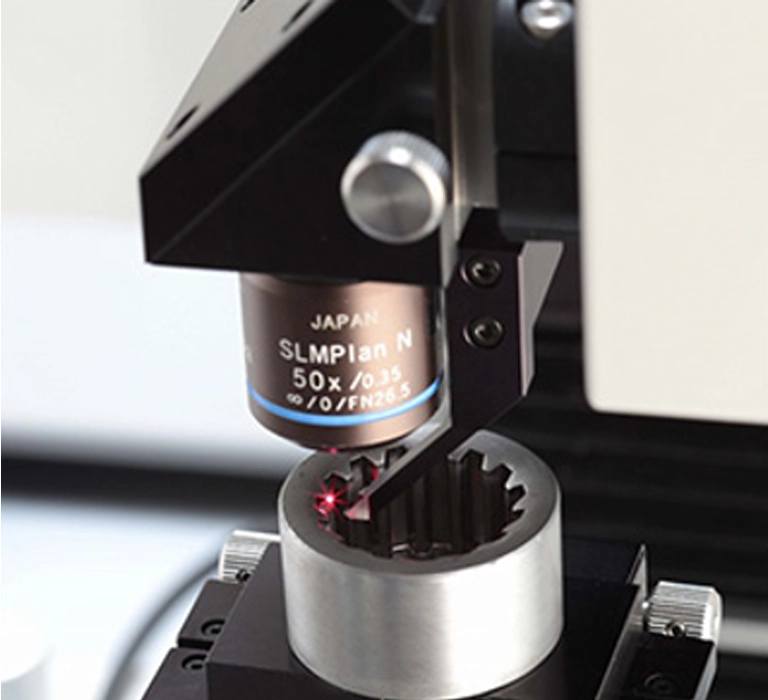

- 3D measurement of internal and external surfaces using a laser probe
- Maximum measurable part size: 120 × 120 × 120 mm
- Contour measurement (polygons, profiles, and roughness)
- Image acquisition during scanning
- Contour and dimensional measurement
- Surface roughness measurement of internal and external surfaces
- Gear profile measurement (optional)
- Calibration gauge measurement
- Roundness measurement
